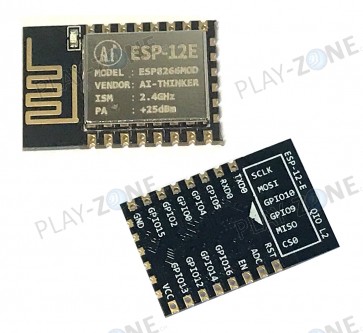

ESP8266 SMT Module - ESP-12E / WIFI

Add Internet to your next project with an adorable, bite-sized WiFi microcontroller, at a price you like!

The ESP8266 processor from Espressif is an 80 MHz microcontroller with a full WiFi front-end (both as client and access point) and TCP/IP stack with DNS support as well.  We do sell these on a breakout, but maybe you wanna just put this in your own project PCB.

We are shipping the ESP-12E version which has the SPI flash pads brought out on the bottom row. Note that you cannot use them for GPIOs or anything, they're there so you can program the FLASH chip only.

Comes with 4MB flash chip, ESP processory, and onboard antenna. These come pre-progammed with the NodeMCU Lua firmware, so you are ready to rock. Some extra parts will be needed to get this going (see the sample-schematic)

For advanced users only! This product is just the module.

Links:

• Huuuuge amount of information on http://www.esp8266.com/ community forum!
• NodeMCU (Lua for ESP8266) webpage with examples and documentation on the Lua framework
• Arduino IDE support for ESP8266

Technical Details:

• Dimensions: 24mm x16mm x 3mm / 0.9" x 0.6" x 0.1"
• Weight: 2g
• 4MB Flash
