JYE 068 Digital Oscilloscope (Kit)
Neuestes JYE Selbstbau-Oszilloskop neu mit 3Mhz Bandbreite
Artikelnummer:
JYE-06804K
3 Stk. ab eigenem Lager sofort lieferbar!
Regulärer Preis: CHF 89.90
Special Price CHF 69.90
Artikelbeschreibung
Details
DSO 068 DIY kit uses through-hole components as much as it can. This makes the scope unique among peers. With through-hole components the kit eases off the requirement of assembly skills and at the same time allows deeper user involvement. Most importantly it brings in the freedom for users to test, modify, experiment, and even design their own projects. And this means more fun!
More over, DSO 068 is not just a kit for training but also a practical tool for everyday use.It was designed on the base of DSO 062 kit and comprises many enhancements in hardware and firmware.
Major improvements include:
- Higher sensitivity (10mV/div vs 100mV/div)
- Wider analog bandwidth (3MHz vs 1MHz)
- Larger capture buffer (1024 points vs 256 points)
- Variable trigger position (1% - 100%) with indicator
- Test signal generator with variable frequency and amplitude
- USB connection
- Upload of captured raw data as CSV file
- Work as USB scope (with jyeLab) and data logger (8 channels, 10-bit resolution) *
- Higher sensitivity (0.2Vpp vs 3Vpp) in built-in frequecy meter
- Battery/USB powered
- Fully enclosured
( * : Function not fully implemented as of firmware 113-06801-040)
Operations of DSO 068 are even easier thanks to silicone pushbuttons and rotary encoder. Parameter setting is simply, straightforward, and quick. Mode switch and utilities are driven by menu. Absolutely no complicate navigation.
This kit is particularly suitable for educational use. It is a great tool for college students.

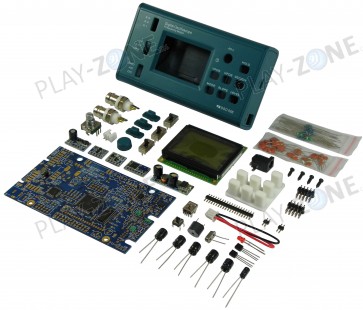

The DSO 068 Kit consists of the following major parts:
- ( 1 ) Main circuit board with pre-soldered ICs and a few SMD parts. Board is pre-tested and MCUs on board are pre-programmed.
- ( 1 ) 128 X 64 graphic dot-matrix LCD module.
- ( 1 ) Step-up voltage converter board (JYE116). It boosts battery voltage to 5V from as low as 2V.
- ( 1 ) Voltage inverter board (JYE120). It generates -5V form +5V with current capacity up to 200mA.
- ( 1 ) On/Off switch board (JYE117). This is the power switch of instrument. [optional]
- ( 1 ) Li-ion battery charger board (JYE118). It includes the USB/Battery power switch circuit. [optional]
- ( 1 ) USB-Uart converter board (JYE119). This bridges the scope to USB host. [optional]
- ( 1 ) Professional 20MHz probe with selectable 1X/10X attenuation.
- ( 1 ) Enclosure set including stand, switch caps, etc.
- All through-hole components, mechanical parts, and accessaries.
Shipment of kit also includes color-printed Assembly Guide and User Manual. All other documents can be downloaded at this page. It is suggested that users also download the softcopies of the accompanying documents for enlargement to have better viewing on screen.
NOTE: Battery is not included in standard product configuration and need to purchase separately. Shipments containing battery could incur higher shipping cost and longer delay due to restrictions of shipping agents.
Source codes of student version firmware are also provided for downloading. They are simplified from full version to help users to understand how the oscilloscope works. The sampling rate of student version is limited to 500Sa/s - 100KSa/s with no other features.
Links
Contents
- One DSO 068 DIY Kit (full version) (battery not included)
- One BNC probe (20MHz, 1x and 10x switchable)
- One USB cable
- Users Manual (English)
- Assembly Guide (English)
Specification
Vertical
- Number of Channel: 1
- Analog Bandwidth: 0 - 3MHz
- Sensitivity: 10mV/Div -- 5V/Div
- Resolution: 8-bit
- Input Impedance: 1M ohm
- Maximum Input voltage: 50Vpk (for 1X probe) and 400Vpk (for 10X probe)
- Coupling: DC, AC, GND
Horizontal
- Max Real-time Sampling Rate: 2MSps
- Max Equivalent-Time Sampling Rate: 20MSps
- Timebase: 0.5us/Div - 10m(minute)/Div
- Record Length: 256, 512, and 1024 variable
- Run/Hold Modes: one button switchable
Trigger
- Trigger Modes: Auto, Normal, Single
- Trigger Types: Rising/falling edge
- Trigger Position: 0% - 100% of capture buffer adjustable
- Trig Point Indicator: Yes
- Frequency adjustable from 1Hz - 100KHz (41 frequencies)
- Amplitude adjustable among 0.3V, 1V, 3V, and 5V
- Save captured waveform to EEPROM and recall after power outage
- Upload screen display as bitmap file
- Upload waveform as CSV file
- USB connection for data transfer and firmware upgrade
- Rotary encoder for quick parameter setting
Display
- 2-inch 128 X 64 black-and-white dot-matrix LCD
- Backlight ON/OFF control
- Contrast adjustable
Power Supply
- 3.7V Li-ion battery/USB
- Supply Current: 300mA @ 3.7V(LCD backlight ON, typical).
- Built-in charger
Physical
- Dimension: 140mm X 70mm X 30mm
- Weight: 120 gram (not including battery and probe)
Zusatzinformation
Zusatzinformation
| Artikelnummer | JYE-06804K |
|---|---|
| Gewicht | 0.3000 |
| Hersteller | JYE Tech |
Bewertungen
Downloads
 JYE DSO 068 Users Manual Size: (695.06 KB) |
|
| JYE DSO 068 Assembly Guide Size: (4.97 MB) |
|
| JYE DSO 068 Schematic Size: (100.46 KB) |
|
 JYE: Source codes of Learning Edition Size: (59.38 KB) |
|
| JYE: Capture Uploading and Waveform File Format Size: (1.24 MB) |
|
| JYE: Data Interface of DSO 068 Size: (889.64 KB) |
|
| JYE: Comparison DSO068 vs. DSO062 Size: (29.1 KB) |
