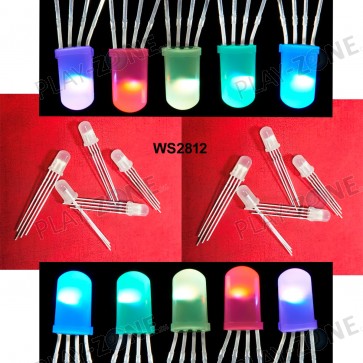

NeoPixel / WS2812 Diffused 5mm Through-Hole LED - 10 Pack

If you like NeoPixel strips you'll luv these 5mm diffused through-hole NeoPixels. All the single-pin-controlling-hundreds-of-LEDs goodness in a breadboard friendly format. Each LED looks just like a shorter version of the classic through-hole 5mm RGB LED with 4 legs, but instead of just red/green/blue there's a little chip inside that can control the LED with high speed PWM for 24-bit color.

Power them with 5V and chain them together, tying the Data-Out pin of one to the Data-in of the previous one in the chain. If you're using an Arduino, you can control these LEDs with the wonderfully-written Neopixel library for Arduino. They also work great with our Trinkets. Note that these are "RGB" instead of "GRB" format used in the 5050-sized LEDs you are so used to. Check in the NeoPixel example code for how to swap the colors automagically.

These great looking LEDs are also fast and responsive with a milky-diffusing lens for a soft look.

Dimensions:

• LED Height: 5mm / 0.2"
• LED Diameter (at base): 6mm / 0.20"
• Length of Pins: 26mm / 1"
• Weight: 0.3g

Comes in packs of 10 pcs.
