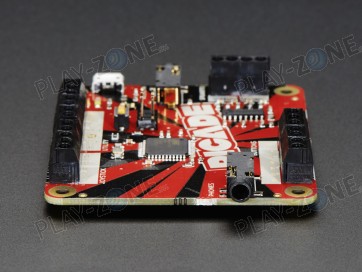

Pimoroni Picade Controller PCB - PIM110

The Pimoroni Picade Controller PCB is an Arduino-compatible board with an integrated 3W stereo amplifier designed for use in arcade projects (like the Picade Cabinet or Picade Console Controller). Basically its everything-you-need to make a Pi ready for your very own DIY arcade console project.

The controller comes fully assembled and behaves like a keyboard when plugged in via USB and has a default key-mapping (though you can reprogram it using the Arduino IDE). Connections are made using screw terminals for a solid, permanent installation.

It uses the same micro-controller as the Arduino Leonardo (the ATmega32U4) and is pre-installed with the Arduino bootloader and Pimoroni software.

Features:

• Powered by an ATmega32U4 (32KB, 2.5K RAM @ 16MHz)
• 6-pin ISP header for direct programming (also pre-loaded with Arduino bootloader)
• Includes a stereo 3W amplifier (PAM8407) for use with 4Ω speakers
• Appears as a USB HID device (keyboard) to the host
• Screw terminal contacts for four-direction Joystick, 12 buttons, and two speakers
• Reset button
• Mounting holes
• Power, Bootload, TX, and RX LED indicators
• Mounting Hole Distances: 59.4mm x 49.3mm / 2.3" x 1.9"
• Product Dimensions: 75.4mm x 60.1mm x 12.1mm / 3.0" x 2.4" x 0.5"
