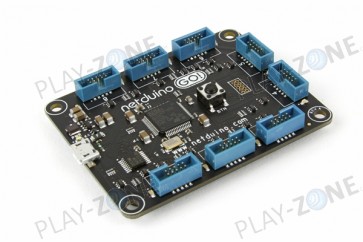

Secret Labs Netduino Go

You wanted a Netduino with more speed, flash, and RAM. You wanted a Netduino with more GPIOs, more serial ports, more analog inputs and more PWMs. You wanted an easy to use, plug and play board with no soldering required. You wanted it and now it's here; The Netduino Go.

The Netduino Go is an open source, plug and play Netduino with 4 times the speed (168MHz), 6 times the code space (384KB) and twice the RAM (100KB+) of the Netduino Plus. The peripherals are virtualized and contain a microchip that works with the mainboard. All you have to do is pick what you need and plug it in.

The Netduino Go Starter Kit is designed to get you up an running quickly. It includes the Netduino Go mainboard, one button module, shield base (beta, see below) module, potentiometer module, RGB LED module, two 5cm Go cables, two 10cm Go Cables, and a 3 foot micro USB cable. It's like freedom, in the form of electrons.

All Netduino Go hardware is production hardware. We're shipping the production Shield Base hardware with early beta firmware so that we can get wide feedback on this new virtualization technology. And to say thank you for beta testing the Shield Base, we've temporarily upgraded its 128KB-flash MCU to a full-blown 512KB-flash 120MHz Cortex-M3 microcontroller. You can connect it to power and a USB-TTL serial cable and use it as a traditional Netduino if you'd like as well--while enjoying its 3 serial ports and other new enhancements.

Both the Netduino Go and the Shield Base run production versions of .NET MF 4.2 QFE1 (RTM).

Comes with 2 GoBus-Cables to attach modules.

Features

    Includes:

•     Processor and Memory
•     STMicro 32-bit Microcontroller
•     Speed: 168MHz, Cortes-M4
•     Code Storage: 384 KB
•     RAM: 100+ KB
•     STM32F405RG

    LEDs

•     Power LED: White
•     Socket LEDs: 8 blue

    Buttons

•     Activates bootloader (hold on boot)
•     Can be used as GPIO input

    I/O Features

•     All 8 sockets are compatible with Go Bus Modules
•     Up to 2 sockets are compatible with Gadgeteer S-U-X modules.

    Power

•     Input: USB powered
•     Output: 5 VDC and 3.3 VDC Switched
•     Max Current: 25 mA per pin
•     Digital I/O are 3.3V (5V tolerant)

    Environmental

•     Operating Temperature: 0 - 70 °C (32 - 158 °F)
•     RoHS Compliant
•     Lead free
