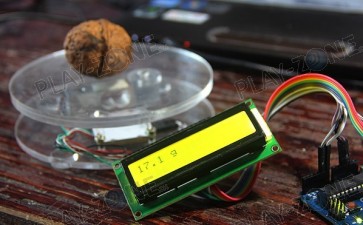

Digital scale with HX711 ADC, upto 5kg / Kit
Availability: Currently out of stock
Very precise digital scale for connection to a microprocessor (f.ex. Arduino), for weights upto 5kg, measures with a precision of 0.3g
The scale is connected with 4 pins only (DOUT, SCK, VCC (5V) and GND), and delivery very accurate measurements thanks to it's highprecision 24BIT HX711-ADC. Connection to f.e.x an Arduino is very simple, as we provide a finished library.
We deliver the scale as a kit, which needs to be screwed together (no soldering required).
Note: Before use, you'll have to calibrate your scale, using the instruction setScale(float scale) of the Arduino Library. If you do not have access to any standard weights, you may use coins (http://de.wikipedia.org/wiki/Schweizer_Franken) or another scale.
Features:
- precise scale with HX711 ADC
- acrylic case / tray
- Size: Diameter 12cm, Height 3cm, Weight 130Gramm
- Operating Voltage 5VDC
- Incl. Connector-Cables 20cm
Arduino and LCD are not included
SKU | P00000409 |
---|---|
Weight | 0.2000 |
Manufacturer | OEM |
