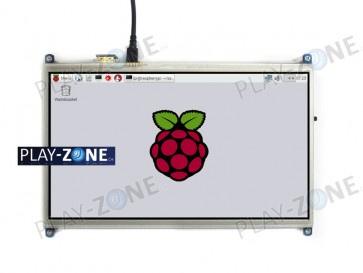

10.1" TFT-Screen with HDMI-Encoder and Resistive Touch (RPi)

Big 10.1 TFT-Screen, Resolution 1024x600 pixels, HDMI and resistive touch (only for the Pi using GPIO)

The resolution of the TFT is 1028 x 600 pixels. Current installations can be adapted easily for this TFT. For the display no driver is reqiured, it's just needed to adapt the resolution. For touch, you can install a small driver or take our finished Raspbian-Image.

As the HDMI-Encoder is included in the TFT, the reaction and speed is like with every PC-monitor.

A Raspberry Pi can be mounted behind the display, and is connected with an HDMI-Adapter. For the Pi 1 Model B or the Pi Zero, you need to use a normal HDMI-Cable for the connection.

Touch can only be used on the Raspberry Pi, it needs to be connected to the GPIO behind the display. If you don't need touch, you can place the Pi whereever you want, or also connect other devices like a PC, Cubie, whatever.

The display is normally powered thru the GPIO of the connected Pi, but it also has a separate USB-Micro-Connector for external Power.

Also compatible with the Pi4 now - just select the HDMI micro-Adapter on checkout.

Includes:

• 10.1" TFT Screen
• HDMI-Adapter
• Mounting Material
• Touchpen

Details:

• 10.1-inch TFT screen display, 1024x600 Resolution
• resistive touch screen
• HDMI input
• Ready-to-go images and drivers for Raspbian / Ubuntu Mate
• Can also be used as a normal computer screen, except the touch
• Backlight can be switched on / off.
• Size 235 x 161mm

Links:

• Installation-Wiki  (Display & Touch-Driver)
• Image Download @ Google Drive (Pi2/3)

Note: If you get a red screen with the Pi4, set max_framebuffer=1 in the config.txt
