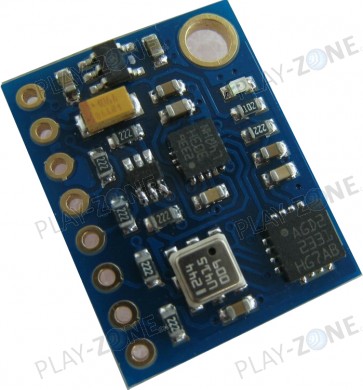

GY 10-DOF IMU Breakout - L3GD20 + LSM303 + BMP180

This inertial-measurement-unit combines 3 of the best quality sensors available on the market to give you 11 axes of data: 3 axes of accelerometer data, 3 axes gyroscopic, 3 axes magnetic (compass), barometric pressure/altitude and temperature. We tested many different 'combination' sensors and found these were the best value, with stable and reliable readings.

The L3DG20 gyroscope + LSM303DLHC accelerometer compass + BMP180 barometric/temperature sensors are all on one breakout here, to save you space and money. Since all of them use I2C, you can communicate with all of them using only two wires. Most will be pretty happy with just the plain I2C interfacing, but we also break out the SDO/SDA and CS1/CS2 Pins, so advanced users can interface with if they choose. A 3V regulator with reverse-polarity protection means you don't have to worry about frying the boards by accident. There's level shifting circuitry so the IMU can be used with 3 or 5V logic boards. And check out those mounting holes! You can securely attach this board to your rocket, robot, art project.

Each order comes with one assembled and tested 10DOF breakout board and a small piece of header.

Here are some quick stats:

• L3GD20 3-axis gyroscope: ±250, ±500, or ±2000 degree-per-second scale
• LSM303 3-axis compass: ±1.3 to ±8.1 gauss magnetic field scale
• LSM303 3-axis accelerometer: ±2g/±4g/±8g/±16g selectable scale
• BMP180 barometric pressure/temperature: -40 to 85 °C, 300 - 1100hPa range, 0.17m resolution
