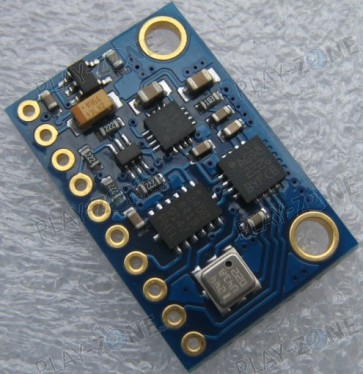

10DOF IMU with L3G4200D, ADXL345, HMC5883L and BMP180
10 Degrees of Freedom on one small board!
SKU:
P00000799
2 pcs. available from stock
CHF39.90
.
Product Description
Details
On this PCB you'll find those ICs, which communicate with I2C - so only 2 IO-Pins are used:
- L3G4200D (3-Axis Angular Rate Sensor)
- ADXL345 (3-Axis Digital Accelerometer)
- HMC5883L (3-Axis Digital Compass)
- BMP180 (Barometric Pressure Sensor)
Of course we supply you with Arduino libraries as well as all the datasheets.
Features:
- Built in regulator and logic converter to support 3.3V/5.0V microcontrollers
- I2C Digital Interface
- Module Size: 25.8 x 16.8mm mounting hole 3mm
- Immersion Gold PCB process
- Standard 2.54mm pin interface, plug straight into breadboards
- Both Straight and Right-Angle headers included
Additional Information
Additional Information
| SKU | P00000799 |
|---|---|
| Weight | 0.0200 |
| Manufacturer | GY |
Reviews
Downloads
 HMC5883L Datasheet Size: (661.17 KB) |
|
 BMP085 and BMP180 Arduino Library Size: (5.64 KB) |
|
| L3G4200D Datasheet Size: (1006.05 KB) |
|
| MPU6050 Arduino Library Size: (73.12 KB) |
|
| Analog Devices ADXL335 Datasheet Size: (424.53 KB) |
|
| Arduino Library for 10DOF (L3G4200D ADXL345 HMC5883L BMP085/BMP180) Size: (237.08 KB) |
|
| Datasheet BMP180 Size: (656.44 KB) |
