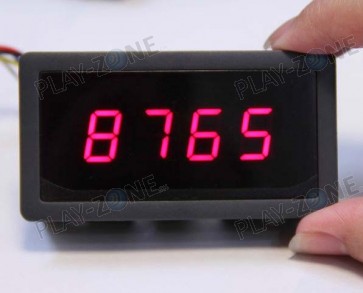

4 Chars 7-Segment Display with Box (74HC595)
4 Chars 7-Segment Display with Box (74HC595)
SKU:
P00000541
Sign up to get notified when this product is back in stock
Availability: Currently out of stock
CHF15.90
.
Product Description
Details
4 Chars 7-Segment Display with Box (74HC595)
This nice module with 4 7-Segment Chars does only use 3 pins (DataIn, Clock, Latch) to drive it - thanks to the four 74HC595 Shift-ICs in the module.The module is compatible with the Arduino shiftOut()-Function (see the sample-code)
The box can just be clicked-in in a right size hole.
Sizes:
- Front: 79mm x 43mm
- Box: 72mm x 39mm
- Height: 26mm
- Char Height: 15mm
Additional Information
Additional Information
| SKU | P00000541 |
|---|---|
| Weight | 0.0500 |
| Manufacturer | OEM |
Reviews
Downloads
 4 x 7 Segment Modul Arduino Code Size: (1.28 KB) |
|
 4 x 7 Segment Modul Schematic Size: (21.54 KB) |
|
| 4 x 7 Segment Modul User Guide (Chinese) Size: (1.28 MB) |
