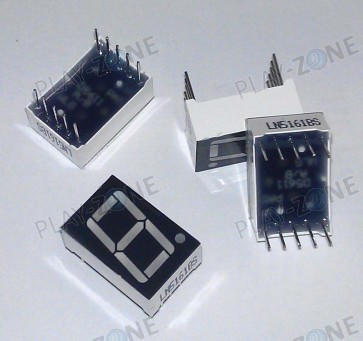

7-segment display red common anode 1 Char 0.56"

7-segment display red common anode 1 char, charheight 14.2mm (0.56")

A seven-segment display (SSD), or seven-segment indicator, is a form of electronic display device for displaying decimal numerals that is an alternative to the more complex dot-matrix displays. Seven-segment displays are widely used in digital clocks, electronic meters, and other electronic devices for displaying numerical information

The segments of a 7-segment display are referred to by the letters A to G, where the optional DP decimal point (an "eighth segment") is used for the display of non-integer numbers.

• 7 segments plus DP (= 8 segments)
• 1 Char
• Standard 10 Pin Layout
• Common anode
• Red LED
• max. Forward Voltage (Vf) =  1.9V
• Forward Current (If) = 30mA
• Reverse Current (Ir) = 10 uA
• max. Luminous Intensity (Iv) = 12.89mcd
• Wavelengt = 643mm
• Size 12.6 mm x 19.0 mm x 8 mm

For more Information please refer to the attached datasheet!
