8-Kanal Relais Modul Karte 5V / 30 VDC KIT
8-Kanal Relais Modul - 5V DC - KIT
SKU:
P00000532
Sign up to get notified when this product is back in stock
Availability: Currently out of stock
CHF26.90
.
Product Description
Details
5V DC 8-Kanal Relais Modul - Kit / Bausatz
- Nennspannung 5VDC
- maximale Schaltleistung 30V DC / 50V AC
- mit Status-LED für jeden Kanal!
- Geeignet z.B. für Modellbau, auch zum Arduino, PIC, AVR, ARM usw.

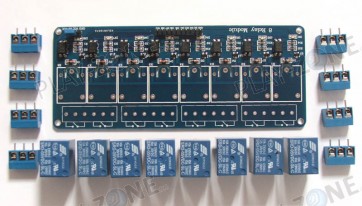

Bausatz - Die Relais sowie die Stromklemmen müssen noch eingelötet werden (sind im Lieferumfang). Wir liefern SONGLE SRD-05VCD-SL-C Relais mit.
Darf nur von fachkundigen Personen installiert resp. in Betrieb genommen werden!
Technische Daten Relay:
- 5V DC SONGLE Power Relay SRD-05VDC-SL-C (5 Pin mit NC / NO / CO)
- Contact resistance: <=100m (ohm)
- Electrical life: 100,000
- Mechanical life: 10,000,000
- Coil rated voltage: 5VDC
- Coil power: 0.36W, 0.45W
- Coil pick-up voltage: <=75%
- Coil drop-out voltage: >=10%
- Ambient temperature: -25 degrees Celsius to +70 degrees Celsius
Additional Information
Additional Information
| SKU | P00000532 |
|---|---|
| Weight | 0.1300 |
| Manufacturer | OEM |
Reviews
Downloads
 Datasheet SONGLE SRD-5VDC-SL-C Size: (98.94 KB) |
|
| Schematic 8 Channel Relay Size: (22.72 KB) |
