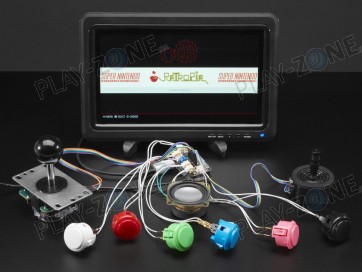

Adafruit Arcade Bonnet for Raspberry Pi with JST Connectors - Mini Kit

Playing retro games is easy on a Raspberry Pi - and that pocket-sized computer is pretty good at it too! All you need is a little help to connect buttons and a joystick up and you can custom design your own arcade console, desktop or stand-up machine, even just a simple controller box. It makes for a fun weekend project that will last all year.

This Adafruit Arcade Bonnet is designed to make small emulator projects a little easier to build. Here's what you can look forward to!

• It is the same size as a Pi Zero, so for really compact builds, this is super small. You can also use it with a Pi 2, 3, B+ or any 2x20 connector Pi.
• It has JST sockets so you can plug in six arcade buttons easily
• Header breakouts for use with both clicky-type switched joysticks and...
• Header breakout and converter for using analog-type joysticks or thumbsticks with potentiometers inside.
• A 3W digital speaker output that can drive 4-8 ohm speakers for when using with a TV output, audio-less HDMI display or PiTFT. Works even when the Pi doesn't have a headphone jack!
• Switches are all managed with an I2C-GPIO converter with interrupt out. The converter is very fast and frees up all the pins so you can use this Bonnet with a PiTFT or any other accessory/device that uses a lot of pins!

This item as sold as a mini-kit, with a Bonnet and headers that need to be soldered in to attach it to a Raspberry Pi! It only takes a few minutes but soldering iron and solder are required.

It also does not come with any of the extras, so you can choose which buttons/joysticks/speaker you want!

Note: Raspberry Pi, arcade buttons, joysticks, speaker, display, and quick-connect wires are NOT included, and must be purchased separately, you can find them here:

Buttons: http://www.play-zone.ch/de/elektronik-kit-zubehoer/arcade/arcade-buttons.html

Joysticks: http://www.play-zone.ch/de/elektronik-kit-zubehoer/arcade/joysticks.html
