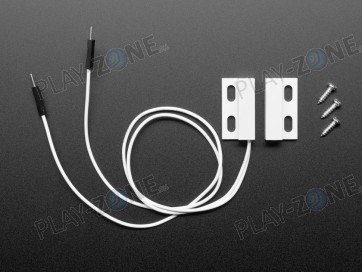

Adafruit Magnetic contact switch (door sensor)
This sensor is essentially a reed switch, encased in an ABS plastic shell. They're often used to detect when a door or drawer is open,
SKU:
ada-375
more than 10 pieces available from stock
CHF7.90
.
Product Description
Details
This sensor is essentially a reed switch, encased in an ABS plastic shell. Normally the reed is 'open' (no connection between the two wires). The other half is a magnet. When the magnet is less than 13mm (0.5") away, the reed switch closes. They're often used to detect when a door or drawer is open, which is why they have mounting tabs and screws.
Details:
- Normally open reed switch
- ABS enclosure
- Rated current: 100 mA max
- Rated voltage: 200 VDC max
- Distance: 15mm max
Dimensions:
- Box size (each side): 27mmx14mmx8.7mm (1inx0.55inx0.34in)
- Cable Length: 25cm (10in)
- Weight (per side): 5.2g (0.18oz)
Additional Information
Additional Information
| SKU | ada-375 |
|---|---|
| Weight | 0.0100 |
| Manufacturer | Adafruit Industries |
