Feetech Analog Feedback Servo FS5106B

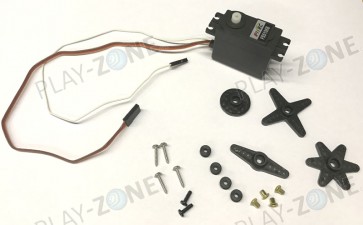

It looks like a servo, it acts like a servo, but it's more than just a servo! We got a factory to custom-make these classic 'standard' sized hobby servos with a twist - the feedback (potentiometer wiper) line is brought out to a fourth white wire. You can read this wire with an analog input such as those on an Arduino, to get the servo's position. That information can be used in robotics to improve stability or even allow 'recording' of servo motion. Comes with a range of horns as seen above.

This Servo is 100% compatible with the sketch written by Adafruit for their Analog Feedback Servo: Check out the example Arduino sketch which demonstrates how to record motion data to the EEPROM and then play it back when a button is pressed.

• Dimensions: Please check datasheet
• Wire length: 30cm
• Torque: 6kg.cm (6V)
• Weight: 40 grams
• Degress: 180
• Dual ball bearing
• Plastic gearbox
