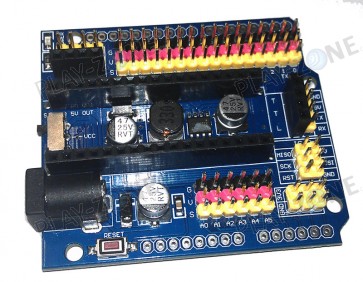

DK Micro Sensor Shield V1.0
Sensor-Shield for the Arduino Micro and compatibles
SKU:
P00000654
more than 10 pieces available from stock
Regular Price: CHF19.90
Special Price CHF13.90
Related Products
Product Description
Details
Sensor-Shield for the Arduino Micro and compatibles
With this handy shield from Deek-Robot you can expand your Arduino Micro with Sensor-Pins (IO, GND,VCC) for all IOs. The Power Supply for the sensor-pins can be switched from either the Micro itself or from an external power source.
There are also headers for ICSP, SDL/SCD, TTL and 3.3V. The integrated voltage regulator ensures that only 5V are forwarded to the Sensor-Pins, even if you apply a higher voltage at the external power supply (20V Max!)
There are also some unpopulated headers in the Arduino-R3-Layout, in case you want to use normal Arduino-Shields with the Micro
Additional Information
Additional Information
| SKU | P00000654 |
|---|---|
| Weight | 0.0500 |
| Manufacturer | Deek-Robot |
