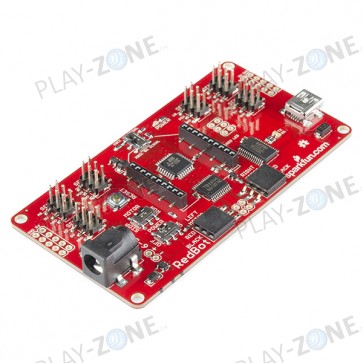

SparkFun RedBot Mainboard
The RedBot Mainboard is a robotic development platform that works with the Arduino IDE
SKU:
ROB-12097
2 pcs. available from stock
CHF55.90
.
Product Description
Details
The RedBot Mainboard is a robotic development platform that works with the Arduino IDE. The RedBot is a motor driver and Ardiuno combination with various headers and connections, eliminating the need to stack multiple shields. By using the RedBot accessory boards and your own chassis, you can design a robot to suit your needs.
The RedBot comes pre-programmed with the Optiboot (Uno) bootloader. By simply connecting a USB mini-B cable, you can program it in the Arduino IDE using our example code, or your own. The optional add-on sensors attach to the main board via 6-pin headers or jumper cables to increase capabilities.
Features:
- 5V Logic
- 6-9V Input Voltage via Barrel Jack or 2-Pin Header
- ATmega328P (pre-programmed)
- TB6612FNG Dual DC Motor Driver
- USB Programmable via FTDI
- XBee Port with HW/SW Serial Switch
- 2x 3-Pin Female Motor Port
- 2x 6-Pin Male Optional Servo Header
- 4x 6-Pin Male Optional Sensor Header
Documents:
Additional Information
Additional Information
| SKU | ROB-12097 |
|---|---|
| Weight | 0.0500 |
| Manufacturer | SparkFun |
Reviews
Downloads
 Redbot Schematic Size: (96.8 KB) |
|
 Redbot Eagle Files Size: (100.42 KB) |
|
| Datasheet ATmega328P Size: (12.52 MB) |
|
| Datasheet TB6612FNG Size: (202.55 KB) |
|
| Datasheet FT232R Size: (770.59 KB) |
|
| RedBot Arduino Library Size: (12.41 KB) |
