Feetech Micro 1.3kg Continuous Rotation Servo FS90R
360 Degrees Continuous Rotaton Servos rotate fully forward or backwards instead of moving to a position.
SKU:
P00000479
Sign up to get notified when this product is back in stock
Availability: Currently out of stock
CHF11.90
.
Product Description
Details
Quality Feetech (FiTec) - Servo!
This servo rotates fully forward or backwards instead of moving to a position. You can use any servo code, hardware or library to control these servos. Good for making simple moving robots. Comes with one horn only, as shown

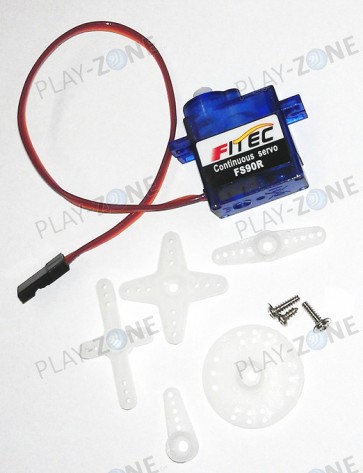

Includes 5 Arms as shown in the picture!
| Model: | FS90R |
| Dimensions: | 23.2 × 12.5 × 22 mm |
| Weight: | 9 g |
| Operating Speed : | 0.12sec/60degree (4.8V) 0.10sec/60degree (6V) |
| Stall Torque : | 1.3kg.cm/18.09oz.in(4.8V) |
| Operating Voltage : | 4.8V~6V |
| Control System : | Analog |
| Direction : | CCW |
| Operating Angle : | 360degree |
| Required Pulse : | 900us-2100us |
| Bearing Type : | None |
| Gear Type : | Plastic |
| Motor Type : | Metal |
| Connector Wire Length: | 20 cm |
Additional Information
Additional Information
| SKU | P00000479 |
|---|---|
| Weight | 0.0500 |
| Manufacturer | Feetech |
Reviews
Downloads
 FS90R Datasheet Size: (65.63 KB) |
