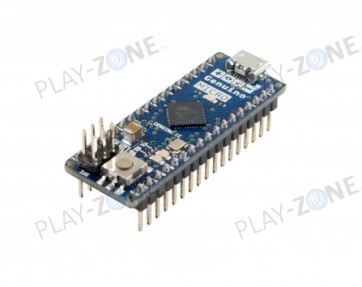

Genuino Micro with Atmega32u4
The Genuino Micro is a microcontroller board based on the ATmega32u4. Made in EU
SKU:
GBX00053
more than 50 pieces available from stock
Regular Price: CHF28.90
Special Price CHF21.90
Product Description
Details
Genuino Micro is a microcontroller board based on the ATmega32u4, developed in conjunction with Adafruit.
It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, an ICSP header and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a micro USB cable to get started. It has a form factor that enables it to be easily placed on a breadboard.
The Micro is similar to the Leonardo in that the ATmega32u4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Micro to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port.
Summary
| Microcontroller | ATmega32u4 |
| Operating Voltage | 5V |
| Input Voltage (recommended) | 7-12V |
| Input Voltage (limits) | 6-20V |
| Digital I/O Pins | 20 |
| PWM Channels | 7 |
| Analog Input Channels | 12 |
| DC Current per I/O Pin | 40 mA |
| DC Current for 3.3V Pin | 50 mA |
| Flash Memory | 32 KB (ATmega32u4) of which 4 KB used by bootloader |
| SRAM | 2.5 KB (ATmega32u4) |
| EEPROM | 1 KB (ATmega32u4) |
| Clock Speed | 16 MHz |
Our boards are all genuine Genuino Boards Made in the EU - no cheap Fareast-Copies!
Additional Information
Additional Information
| SKU | GBX00053 |
|---|---|
| Weight | 0.0500 |
| Manufacturer | Genuino |
