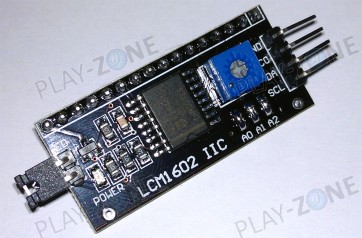

I2C-Backpack (PCF8574T) for 5V 1602-/2004-LCDs
I2C-Backpacks dienen dazu, die benötigen I/O-Pins zu Ansteuerung von LCDs zu Reduzieren, und so mehr freie IOs zu schaffen.
SKU:
P00000418
5 pcs. available from stock
CHF7.90
.
Product Description
Details
I2C-Backpack (PCF8574T) for all 5V 1602- and 2004-LCDs with ST7066/HD44780 (16 Pin Interface)
LCD backpacks reduce the number of pins needed to connect to an LCD.
This I2C-Backpack featuring the PCF8574T-I2C-Driver is soldered behind a standard 1602- or 2004-LCD - after that, only 2 I/O-Pins are required to get the LCD up and running. Of course, we provide an Arduino Library for instant and easy operation.
Additionally, you can adjust the constrast with a potentiometer on the backpack, as well as completely disable the backlight with a jumper.
Features:
I2C-LCD, only 2 I/O-Pins are required
PCF8574T-Driver
Pins: SDA / SCL / VCC / GND
For all standard 5V 16 Chars, 2 Lines and 20 Chars, 4 Lines LCD
Potentiometer for Contrast
Disable Backlight by jumper
Arduino-Library LiquidCrystalI2C available
Size: 40mm x 18mm
I2C-Addresssettiungs (0 = Jumper closed, 1 = Jumper offen), please adjust the address in your sketch:
| 0 | 0 | 0 | 0x20 |
| 0 | 0 | 1 | 0x21 |
| 0 | 1 | 0 | 0x22 |
| 0 | 1 | 1 | 0x23 |
| 1 | 0 | 0 | 0x24 |
| 1 | 0 | 1 | 0x25 |
| 1 | 1 | 0 | 0x26 |
| 1 | 1 | 1 | 0x27 |
Additional Information
Additional Information
| SKU | P00000418 |
|---|---|
| Weight | 1.0000 |
| Manufacturer | OEM |
Reviews
Downloads
 I2C Backpack Arduino Library Size: (19.5 KB) |
