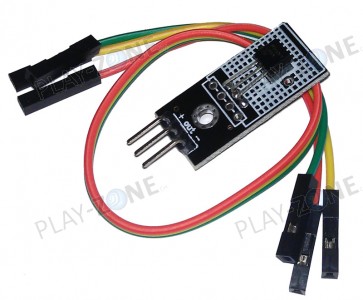

LM35 Temperature sensor breakout
LM35 Temperature sensor breakout
SKU:
P00000595
more than 10 pieces available from stock
CHF8.90
.
Product Description
Details
LM35 Temperature sensor breakout
Precision Centigrade TEmperature Sensor, Range 0 to approx. 110 degrees celsius
The output voltage is 10mV per degree celsius - so it's very easy to measure the current temperature.
Examples for the Arduino can be found here: http://playground.arduino.cc/Main/LM35HigherResolution
Details:
- Operating Voltage 4V to 20V
- Output Voltage 0.0 - 1.0V
- SIze: 28mm x 12mm x 10mm
Additional Information
Additional Information
| SKU | P00000595 |
|---|---|
| Weight | 0.0500 |
| Manufacturer | OEM |
Reviews
Downloads
 LM35 Datasheet Size: (1.88 MB) |
