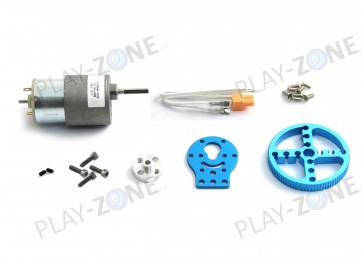

Makeblock 37mm DC Motor Robot Pack-Blue

37mm diameter DC metal geared motor, together with a motor bracket, a shaft connector and a multipurpose wheel.

The motor bracket included is suitable for 37mm motor and 25mm motor. The multipurpose wheel can be used as a timing pully, or a wheel hub, or a tank wheel.

Model：LT37GB90-3329

Electrical Characteristics

3.1. Test condition

3.1.1. Rated voltage： 12.0 V(DC)；

3.1.2. Ambient temperature：+25±3℃；

3.1.3. Ambient relative：60%±5%；

3.2. No-load characteristic

3.2.1 Reductionratio： 1:90 ;

3.2.2 No load current：≦ 100 mA

3.2.2 No load speed： 50 ±10%rpm;

3.3. Load characteristic

3.3.1. Rated torque： 4.5±Kg.cm;

3.3.2. Rated current：≦ 300 mA;

3.3.3. Rated speed： 40±10%rpm;

3.3.4. Stall torque: 10.0± kg.cm;

3.3.5. Rated current：≥ 1.1 A;

3.4. Direction of Ratation：CW

Thrust play of shaft：0.05-0.5 mm;

Radial play of shaft：≦ 0.02 mm;

 Part List:
