Makeblock Thread Drive Pack-Blue

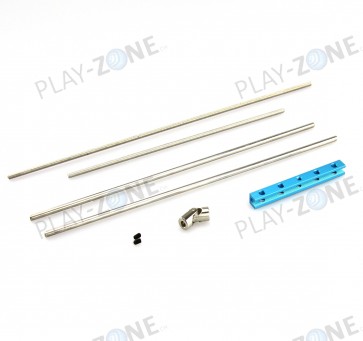

This pack included two Fully Threaded Rods, two Linear Motion Shaft, a Universal Joint and a Thread Drive Beam.(Other beams and the motor in the last picture are not included.)

1.Fully Threaded Rod M4x192mm/M4x280mm

Features:

• Made of steel, zinc plated.
• Lengh: 192mm/280mm

2.Linear Motion Shaft 4x288mm

Features:

• Made of tainless Steel
• Can drill into 4mm holes. Compatible with Thread Drive Beam
• Lengh: 288mm

3.Thread Drive Beam

Features:

• Made from 6061 aluminum extrusion, anodized surface. Excellent strength and twist resistance.
• With thread hole in the middle that compatible with the Fully Threaded Rod.
• Other holes without thread can be drilled for 4mm shaft.
• Threaded slot enables easy and flexible connection.
• Cross-sectional area 8x8mm, length 80mm.

4. Universal Joint 4x4mm

Features:

• Material: stainless steel
• Max deflection angle: 45°
• Size: D9*Φ4*Φ4*M3*L22mm
• 2 Headless Set Screw included.

Part list:

• 1x   Fully Threaded Rod M4x192mm
• 1x   Fully Threaded Rod M4x280mm
• 2x   Linear Motion Shaft 4x288mm
• 1x   Thread Drive Beam
• 1x   Universal Joint 4x4mm
• 2x   Headless Set Screw M3x5
