MakerBeam Regular Starter Kit black anodised

MakerBeam is a Mini-T open-source building system and a versatile structural system. Mini-T is a miniature version of T-slot (a technology that is widely used for industrial automation, robotics and machine enclosures.) Not only is it small enough to work as a model building system, but it's also precise and strong enough to build real machines and robots. It consists of square 10mm extruded aluminum beams, various connectors and the hardware necessary to build just about anything. All you need is a dream!

This stuff is very cool, and there is absolutely no end to what can be done with it. Motor mounts can bolt directly to the beams and with the use of our small angle brackets, you can mount servos as well. Because MakerBeam is open-source, you're encouraged to develop and build your own pieces to interlink using the Mini-T standard, even further expanding the possibilities.

The components give you endless building possibilities in miniature size. MakerBeam nuts and bolts are M3 size. The design allows circuit boards to slot right into the sides.There are no fixed positions for mounting giving you the freedom to build your own design easily.

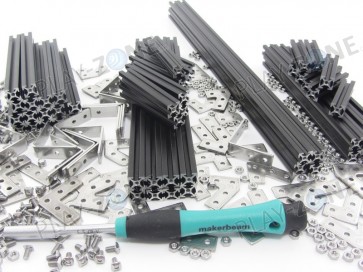

Our MakerBeam Starter Kit consist of various elements.

• Mini T-slot profile beams
• 4 x 300mm Mini-T beams
• 8 x 200mm Mini-T beams
• 6 x 150mm Mini-T beams
• 16 x 100mm Mini-T beams
• 8 x 60mm Mini-T beams
• 8 x 40mm Mini-T beams
• = Total 50 Mini T-slot profile beams

• Brackets:

• 24 x 90 degree brackets
• 12 x 60 degree brackets
• 12 x 45 degree brackets
• 12 x outside corner brackets
• = Total 60 Brackets

• 2 bags nuts and bolts (M3)

• Free with the Kit: 1 M3 Hex nut driver

Do you have a question about a product? Do you have a suggestion for the description or even found an error? Contact us!
