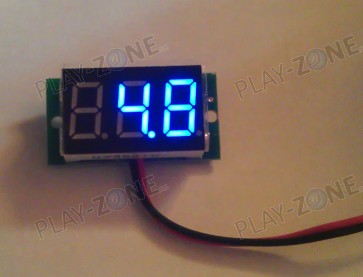

Adafruit Mini 2-wire Volt Meter (3.2 - 30 VDC) Blue

Put a voltage meter anywhere with this very handy display. These are often used by RC hobbyists for keeping track of batteries but we thought it would be great on a breadboard or enclosure. This is the 2-wire version of the volt meter, two wires are used to power it and measure at the same time.

Simply connect the red wire to the positive supply, and black to negative ground. The display has a microcontroller that will read the voltage, compare it to a stable reference and display the voltage with 0.1V precision on a 3-digit 7-segment display. It works from 3.2V up to 30V so it will be good for nearly any electronic project! The meter draws 3-4mA to power the microcontroller and display. This particular LED display is a nice vivid green, which we found very readable. Mounting tabs make this module easy to attach to any box or plate.

Dimensions:

• PCB: 30mm x 20mm
• Display: 23mm x 14mm
• Combined Depth: 11mm
• Weight: 5.45g

Power specifications:

• 3.2V to 30V DC measurements
• 0.1V precision
• 3-4mA draw
• Blue LED display
• Use with positive voltages only!
