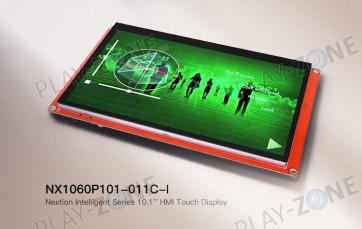

Nextion Intelligent - 10.0" HMI LCD MultiTouch Display

The Nextion Intelligent Series are now available.

The Nextion displays are intelligent displays with touch, flash memory and a serial interface. With the freely available Nextion GUI for Windows, the necessary data such as images or animations are loaded directly onto the display and linked to actions such as buttons. The Arduino - or another microprocessor - now only has to exchange the relevant data with the display via serial port, e.g. send measurement data for display or receive a touch on a button. The display is completely handeled by the Nextion. Of course, the Nextion displays can also be used with the Raspberry Pi (all models) or other microcontrollers with a serial interface.

The Intelligent Series products have more powerful hardware in terms of MCU, Flash storage and SRAM compared with Basic Series and Enhanced Series. What’s more and new? The audio, video and animation play functions enrich user’s project HMI interaction. The Intelligent Series supports advanced software features and functions such as transparent component, page loading effect, component Move and Drag .etc. Check it out from below table!

For Intelligent Series, users can develop the HMI GUI project via the free latest Nextion Editor software ver 0.58 or above, the easy Drag-and-Drop components and simple ASCII text based instructions will dramatically reduce your HMI project development workloads.

The Intelligent Series is an advanced and powerful HMI solution for you.

Links:

• Nextion Editor Guide: https://nextion.tech/editor_guide/
• Nextion Instruction Set : https://nextion.tech/instruction-set/

Technische Daten:

• Modell: NX1060P101-011R-I
• Display Size: 10.0"
• Resolution: 1024 x 600
• Touch Panel: CTP (Capacitive Touch)
• Colors : 65536
• Flash : 128MB
• RAM : 512KB
• MCU : 200mHz
• EEPROM : 1024 Byte
• GPIOs : 8
• RTC : Yes
• Enclosure: No
• Datasheet : https://nextion.tech/datasheets/nx1060p101-011c-i/
