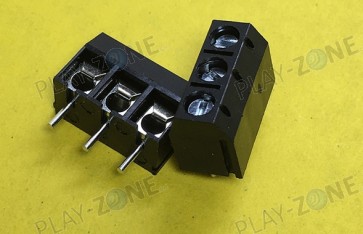

Screw Terminals 5mm Pitch (3-Pin) Black
Screw Terminals (Terminal Block / Terminal Connector) mit Schraubanschluss, 5mm / 3Pin / Black
SKU:
P00001790
more than 200 pieces available from stock
CHF1.20
.
- Buy 10 for CHF1.00 each and save 17%
Product Description
Details
Screw Terminals with 5mm pitch pins. Have the really cool feature of slide-locking together to form any size you need (4, 5, up to 20 without problems). Rated up to 300V @ 16A. Terminal can accept 22 to 14AWG wire. 5mm/197mil pin pitch will line up well with standard 0.1" perf boards but the pins are thick enough (1.0mm OD) that you may need to increase the hole diameter on some perf boards.
Specifications:
- Spacing: 5.0mm
- Pins: 3
- Screw M2.5
- Rated Voltage: 300V
- Rated Power: 16A
- Application Wire: 22 -14 AWG
- Color: Black
- Pinsize: 1mm
Additional Information
Additional Information
| SKU | P00001790 |
|---|---|
| Weight | 0.0010 |
| Manufacturer | KEFA |
