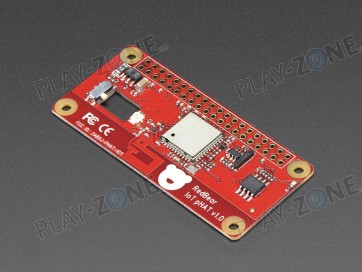

Red Bear IoT pHAT for Raspberry Pi - WiFi + BTLE - unassembled

So you've got your Pi 3 with its built-in wireless LAN and Bluetooth, but what about your Pi Zero? Say hello to the IoT pHAT from Red Bear! This Zero-size board provides WiFi (802.11bgn / 2.4GHz) and Bluetooth (v4.1 / BTLE) connectivity direct from the GPIO header. You don’t need to use a dongle plugged into the Pi Zero’s solitary data micro-USB port via a USB OTG adapter. Just snap it on top of a Raspberry Pi Zero (or really, any Raspberry Pi with a 2x20 connector)!

The IoT pHAT provides a neat and convenient way to add WiFi and Bluetooth connectivity to your Pi Zero, while freeing up the USB data port. Using the same wireless radio chip as the Pi 3 results in reliable signal strength and quality via an on-board or optional external antenna.

As with other pHATs, it works with all of the 40-pin Raspberry Pi variants - 2/B+/A+/Zero - but using it with the Pi Zero makes for a super-tiny package.

Features:

• AMPAK AP6212A Wireless Module (Broadcom BCM43438 A1 chip inside)
  • WiFi (802.11bgn / 2.4GHz)
  • Bluetooth (4.1) and BLE support
• Single antenna for concurrent WiFi and Bluetooth operations
  • Onboard PCB antenna
  • External antenna connector
  • Antenna switch for extenal antenna
• 32 Kbit (4 KByte) EEPROM for DTOverlay configuration
• 40-pin connector
  • WiFi: SDIO v2.0 - up to 20 MHz clock rate
  • Bluetooth: UART (up to 4 Mbps)

Note: This product comes unassembled and will require some light soldering.

Links:

• RedBear Labs' Github-Page
