Red illuminated Pushbutton "OK" on Breakout
Red illuminated Pushbutton "OK" on Breakout
SKU:
P00001043
more than 10 pieces available from stock
CHF4.90
.
Product Description
Details

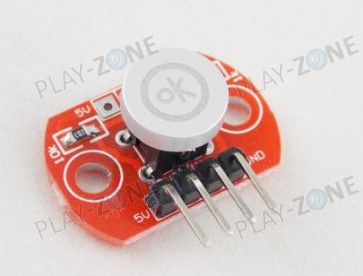

Red iIlluminated Pushbutton "OK" on Breakout
Red illuminated Pushbutton with "OK"-Sign. Ready to use on a breakout board incl. pull-up-resistors and resistor for the LED.
The illumination of the button can be controlled too - to indicate the button is active or an action is required. Button and LED are Active-Low: the button is high and goes low once pushed. The LED is off unless you put the In-Pin to Low or Ground.
Pins:
- VCC (5V, can also be used with 3.3V but then the illumination is weaker)
- GND
- IN (to control the illumination)
- OUT (to read the button)
Size:
- 2.5cm x 1.5cm (without pins)
- Button: 1cm diameter
Additional Information
Additional Information
| SKU | P00001043 |
|---|---|
| Weight | 0.0100 |
| Manufacturer | Play-Zone |
