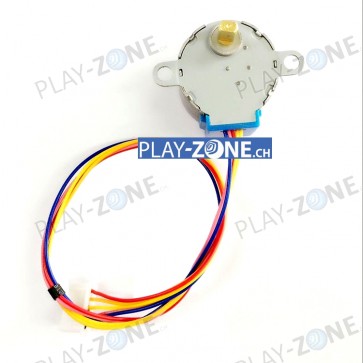

Schrittmotor / Stepper Motor 12V 1/64
Hochqualitativer Schrittmotor / Stepper Motor 12V 1/64 5Pin
SKU:
P00000125
Sign up to get notified when this product is back in stock
Availability: Currently out of stock
CHF6.90
.
Product Description
Details
Qualitativ hochstehender Stepper Motor / Schrittmotor 28BY J48
Spezifikationen
- Product specifications ︰ 28BYJ48
- Rated voltage: 12VDC ± 10%
- Number of phases: 4
- Reduction ratio: 1/64
- Step angle: 5.625 ° / 64
- DC Resistance: 300Ω ± 7% (25 ° C)
- No-load pull-in frequency:> 600Hz
- No-load pull frequency:> 1000Hz
- Pull-in torque:> 39.2mN.m (100Hz)
- Self-positioning torque:> 34.3mN.m
- Insulation resistance:> 10MΩ
- Dielectric strength: 600VAC/1mA/1s
- Temperature rise: <35K (100Hz)
- Noise: <35dB (100Hz, No load, 10cm)
- Weight: About 40g
Links:
- Arduino Sample Sketch @GitHub: https://github.com/Play-Zone/ArduinoStepMotor
