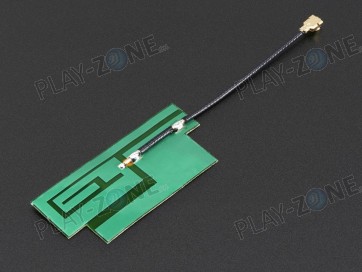

Slim Sticker-type GSM/Cellular Quad-Band Antenna - 3dBi uFL
At just 75mm long from tip to tip and and with a thickness of just 2mm, this 3dBi GSM antenna is slim, compact and sensitive, with a 3dBi gain.
SKU:
ada-1991
more than 20 pieces available from stock
CHF3.90
.
Product Description
Details
That's one slim cellular antenna! At just 75mm long from tip to tip and and with a thickness of just 2mm, this 3dBi GSM antenna is slim, compact and sensitive, with a 3dBi gain. The antenna juts out from its base with stick-on back so you attach it to an enclosure if you're making something like, say, a DIY phone. It has a tiny uFL connector on the end - which is perfect for the FONA - but will also work well for any other RF project on the 850/900/1800/1900/2100 bands, such as any other Cellular or GSM/GPRS device.
Dimensions:
- Length w/ stick-on back: 75mm/3.0" long with stick-on back
- Antenna length: 38mm/1.5"
- Weight: 0.5g
Additional Information
Additional Information
| SKU | ada-1991 |
|---|---|
| Weight | 0.0100 |
| Manufacturer | OEM |
Reviews
Downloads
 Slim Sticker GSM-Antenna Datasheet Size: (1.89 MB) |
