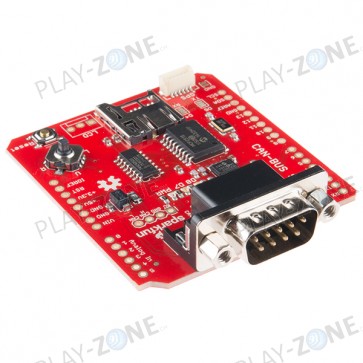

SparkFun CAN-BUS Shield inkl. Headers
Yes, he CAN - Arduino Shield for CAN v2.0B upto 1 Mb/s!
SKU:
DEV-13262
5 pcs. available from stock
CHF32.90
.
Product Description
Details
This shield gives the Arduino CAN-Bus capability. It uses the Microchip MCP2515 CAN controller with MCP2551 CAN transceiver. CAN connection is via a standard 9-way sub-D for use with OBD-II cable. Ideal for automative CAN application. The shield also has a uSD card holder, serial LCD connector and connector for an EM406 GPS module. Making this shield ideal for data logging application.
-Cable not included - View the related products for a recommended cable to use with this board
Note: This product is a collaboration with SK Pang Electronics. A portion of each sales goes back to them for product support and continued development.
Only at Play-Zone you get 2 pairs or Arduino Stackable Headers for free, which are not included in the original scope of delivery!
Features
- CAN v2.0B upto 1 Mb/s
- High speed SPI Interface (10 MHz)
- Standard and extened data and remote frames
- CAN connection via standard 9-way sub-D connector
- Power can supply to Arduino by sub-D via resettable fuse and reverse polarity protection.
- Socket for EM406 GPS module
- Micro SD card holder
- Connector for serial LCD
- Reset button
- Joystick control menu navigation control
- Two LED indicator
Additional Information
Additional Information
| SKU | DEV-13262 |
|---|---|
| Weight | 0.0500 |
| Manufacturer | SparkFun |
Reviews
Downloads
 CAN-Bus Shield Schematics Size: (48.4 KB) |
|
 Eagle Files Size: (52.05 KB) |
|
| Datenblatt MCP2551 Size: (343.92 KB) |
|
| Datenblatt MCP2515 Size: (885.9 KB) |
|
| Arduino CanBus-Library Size: (35.14 KB) |
