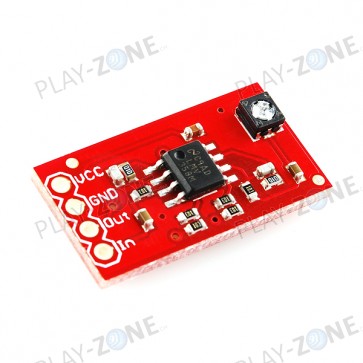

SparkFun LMV358 OpAmp Breakout
This is a simple Op Amp breakout board, set up as a 2-stage amplifier with a gain of 100 (gain of 10 for each stage).
SKU:
BOB-09816
Only 1 left
CHF9.90
.
Product Description
Details
This is a simple Op Amp breakout board, set up as a 2-stage amplifier with a gain of 100 (gain of 10 for each stage).
The on-board trim pot sets the signal level between the stages, not the feedback path. The bandwidth is set to 15.9kHz by a pair of feedback capacitors, or over 100kHz with the caps removed. The LMV358 opamp can source up to 160mA and works well as a low impedance driver/buffer.
Additional Information
Additional Information
| SKU | BOB-09816 |
|---|---|
| Weight | 0.0500 |
| Manufacturer | SparkFun |
Reviews
Downloads
 OpAmp Breakout Schematic Size: (11.72 KB) |
|
 OpAmp Breakout Eagle Files Size: (32.49 KB) |
|
| LMV358 Datasheet Size: (1.67 MB) |
