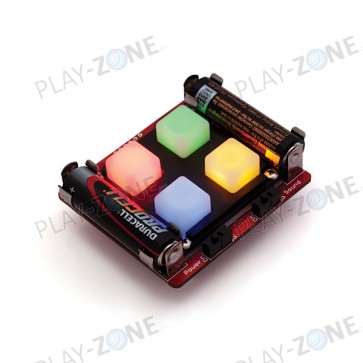

Simon Says - Through-Hole Soldering Kit

This is the latest version of our popular through-hole Simon Says Kit. We've made some changes to the board that should make it easier than ever for the beginner to build! All components are through-hole, making this kit a great place to start when you're learning to solder. When building this kit, you'll have a chance to solder a 28-pin microprocessor, LEDs, battery clips and more.

After you have successfully assembled the kit, you will have a greater knowledge of through-hole soldering and the tools, techniques, and terminology required to populate your own PCB prototype. You will have a development platform with 5 outputs (LEDs and buzzer), 5 inputs (buttons), and serial for debugging. And, of course, you'll have your very own Simon game!

Checkout the assembly instructions - we're pretty proud of them. The kit even includes batteries! Assembly time varies, but for a true beginner with no soldering experience, the kit can take 20-40 minutes to assemble.

Note: This ATmega328 comes pre-programmed with the Simon code as well as the STK500 serial bootloader. This serial bootloader will allow you to re-program the Simon game using the Arduino development environment. There is not direct support under the Arduino IDE but the 'Lilypad Arduino w/ ATmega328' should allow you to reprogram the board using Arduino. You can also use a standard text editor and WinAVR. The serial port on this board requires a male header and FTDI Basic board, not included, but related below.

Kit Includes:

• 1x ATmega328 - pre-programmed with Simon firmware
• 1x Buzzer
• 2x 0.1μF Cap
• 1x 10K Resistor
• 4x LEDs (blue, yellow, red, green)
• 2x Slide Switch
• 4x Battery Clips
• 2x AA Batteries
• 1x Button pad
• 1x Bezel
• 4x Standoffs and screws
• 1x Assembly instructions

A soldering iron and wire cutters are the bare minimum tools required.

Note: The video below was made using the older version of out Simon kit, so there are a few components that won't be in the same place as in your kit, but the parts are still the same so the video should still be helpful.
