Optical Dust Sensor - Sharp GP2Y10
Sharp’s GP2Y1010AU0F is an optical air quality sensor, designed to sense dust particles.
SKU:
P00000875
9 pcs. available from stock
CHF15.90
.
Product Description
Details
Sharp’s GP2Y1010AU0F is an optical air quality sensor, designed to sense dust particles. An infrared emitting diode and a phototransistor are diagonally arranged into this device, to allow it to detect the reflected light of dust in air. It is especially effective in detecting very fine particles like cigarette smoke, and is commonly used in air purifier systems.
The sensor has a very low current consumption (20mA max, 11mA typical), and can be powered with up to 7VDC. The output of the sensor is an analog voltage proportional to the measured dust density, with a sensitivity of 0.5V/0.1mg/m3.

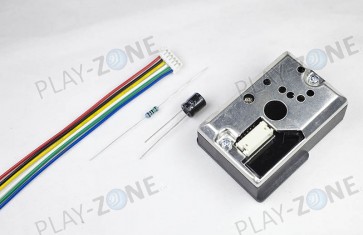

WIth Play-Zone, you'll with the sensor a 6-pin 1.5mm pitch connector with 20cm cables, as well as a 220 uF capazitor and 150 ohm resistor to set up the sensor correctly according to Sharps AN. Please refer to the datasheet for more information.
Dimensions: 1.81 x 1.18 x 0.69" (46.0 × 30.0 × 17.6 mm)
Additional Information
Additional Information
| SKU | P00000875 |
|---|---|
| Weight | 0.0500 |
| Manufacturer | Sharp |
Reviews
Downloads
 Sharp GP2Y10 Datasheet Size: (154.92 KB) |
