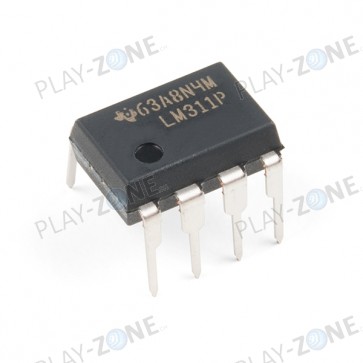

TI Differential Comparator - LM311
The LM311 device is a single high-speed voltage comparator.
SKU:
COM-13950
10 pcs. available from stock
CHF1.50
.
- Buy 10 for CHF1.20 each and save 20%
Related Products
Product Description
Details
The LM311 device is a single high-speed voltage comparator.
This device is designed to operate from a wide range of power-supply voltages, including ±15-V supplies for operational amplifiers and 5-V supplies for logic systems. The output levels are compatible with most TTL and MOS circuits.
It is capable of driving lamps or relays and switching voltages up to 50 V at 50 mA. All inputs and outputs can be isolated from system ground. The outputs can drive loads referenced to ground, VCC+ or VCC−. Offset balancing and strobe capabilities are available, and the outputs can be wire-OR connected. If the strobe is low, the output is in the off state, regardless of the differential input.
- Fast Response Time: 165 ns
- Strobe Capability
- Maximum Input Bias Current: 300 nA
- Maximum Input Offset Current: 70 nA
- Can Operate From Single 5-V Supply
Additional Information
Additional Information
| SKU | COM-13950 |
|---|---|
| Weight | 0.0200 |
| Manufacturer | Texas Instruments |
Reviews
Downloads
 LM311 Datasheet Size: (2.06 MB) |
