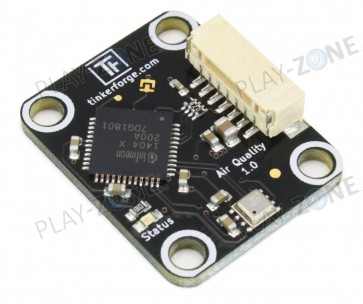

Tinkerforge Air Quality Bricklet
Measures IAQ (indoor air quality) index, air pressure, humidity and temperature, Configurable temperature compensation for use cases in enclosures
SKU:
P00002517
2 pcs. available from stock
CHF38.90
.
Product Description
Details
Features
- 4 channel galvanically isolated frequency counter
- Configurable edge count per channel
- Measures duty cycle, period and frequency per channel
- Frequency range from 0.03Hz to 4MHz
- Time resolution up to 10.4ns and frequency resolution up to 0.03Hz
Details
The Air Quality Bricklet can measure
- IAQ (indoor air quality) index,
- Air pressure in hPa,
- Humidity in %RH and
- Temperature in °C.
The IAQ index is a measurement for the quality of air. To calculate the IAQ index the Bricklet detects ethane, isoprene (2-methylbuta-1,3-diene), ethanol, acetone and carbon monoxide (often called VOC, volatile organic components) by adsorption. These gas measurements are combined with the measurements of air pressure, humidity and temperature to calculate the final IAQ index.
The IAQ index has a range of 0-500:
Typical applications for this Bricklet are the monitoring of air quality, environmental statistics, home automation and similar.
The Air Quality Bricklet has a 7 pole Bricklet connector and is connected to a Brick with a 7p-10p Bricklet cable.
Technical Specifications
| Property | Value |
|---|---|
| Sensor | BME680 |
| Current Consumption | 100mW (20mA at 5V) |
| IAQ Index Resolution | 1 |
| Air Pressure Resolution | 0.0018hPa |
| Humidity Resolution | 0.008%RH |
| Temperature Resolution | 0.01°C |
| IAQ Index Accuracy | ±15 and ±15% of reading |
| Air Pressure Accuracy | ±0.12hPa (700-900hPa at 25-40°C), ±0.6hPa (full scale) |
| Humidity Accuracy | ±3%RH (20-80%RH at 25°C) |
| Temperature Accuracy | ±0.5°C (at 25°C), ±1.0°C (0-65°C)* |
| Measurement Frequency | 0.3 measurements per second |
| Dimensions (W x D x H) | 25 x 20 x 5mm (0.98 x 0.79 x 0.19") |
| Weight | 2.1g |
Links
- Complete documentation and information about TinkerForge: http://www.tinkerforge.com/en/doc/index.html
Additional Information
Additional Information
| SKU | P00002517 |
|---|---|
| Weight | 0.0100 |
| Manufacturer | Tinkerforge |
