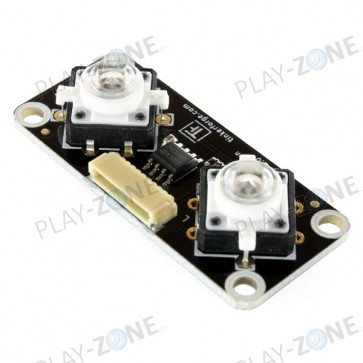

Tinkerforge Dual Button Bricklet
The Dual Button Bricklet is equipped with two buttons and can extend Bricks.
SKU:
P00000940
Only 1 left
CHF11.90
.
Product Description
Details
Features
- Two tactile buttons with built-in blue LEDs
- LED auto-toggle possible
Details
The Dual Button Bricklet is equipped with two buttons and can extend Bricks. Both buttons have a built-in blue LED. You can read the current state of the button (pressed/released) and of the LED (on/off). You can turn the LED on/off yourself or enable auto-toggle. In auto-toggle mode the LEDs are toggled between on/off with each button press.
It is also possible to use events. This allows to react to button presses without polling.
Technical Specifications
| Property | Value |
|---|---|
| Current Consumption | 1mA per active LED |
| Button Type | Tactile Button with LED |
| Button Operating Force | 150gf |
| Button Travel Distance | 2.5mm |
| LED Color | Blue |
| Dimensions (W x D x H) | 45 x 20 x 10mm (1.77 x 0.79 x 0.39") |
| Weight | 6g |
Comes Packaged With
- Dual Button Bricklet
- Chosen Bricklet Cable
- Chosen Mounting Kit
Links
- Complete documentation and information about TinkerForge: http://www.tinkerforge.com/en/doc/index.html
Additional Information
Additional Information
| SKU | P00000940 |
|---|---|
| Weight | 0.0100 |
| Manufacturer | Tinkerforge |
