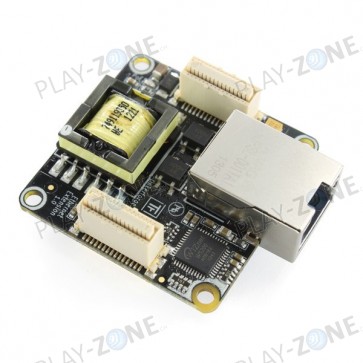

Tinkerforge Ethernet Master Extension (with PoE)
Communicate directly with Bricks/Bricklets without Brickd, Supports 10/100 Mbit/s Ethernet (1000 Mbit/s compatible)
SKU:
P00000752
2 pcs. available from stock
CHF76.90
.
Product Description
Details
Features
- Communicate directly with Bricks/Bricklets without Brickd
- Supports 10/100 Mbit/s Ethernet (1000 Mbit/s compatible)
- Integrated PoE Power Supply (PD Class 0 for IEEE 802.3af)
- Can power a Stack via Ethernet Cable
Details
With this Ethernet Extension you can control Bricks and Bricklets and integrate them into a LAN. The module supports 10BaseT/100BaseTX Ethernet and is 1000BaseTX compatible. The integrated PoE power supply allows to power the connected modules over industry standard IEEE 802.3af such that a PoE injector as well as PoE switches can be used to power stacks.
Since the device itself handles TCP/IP packages generated by the API, it is possible to connect directly from your controlling device (mobile phone, tablet, (embedded) PC). A Brick Daemon is not necessary.
To use the Ethernet Extension a Master Brick is mandatory. If you want to use other Bricks, you can build a stack and plug them also on top of the Master Brick. If you want to use Bricklets you can attach them to the Master Brick or to other Bricks in the stack. From the programming perspective this is completely transparent, i.e. all Bricks and Bricklets can be used exactly the same way as if they were connected to your controlling device via USB.
Technical Specification
| Property | Value |
|---|---|
| Current Consumption | 100mA (average), 175mA (maximum) |
| PoE 5V Power Supply | > 1A |
| Ethernet Support | 10BaseT/100BaseTX, 1000BaseTX compatible |
| Maximum Concurrent Connections | 7 |
| Dimensions (W x D x H) | 40 x 40 x 16mm (1.57 x 1.57 x 0.63”) |
| Weight | 22g |
Comes Packaged With
- Ethernet Master Extension (with PoE)
- Chosen Mounting Kit
Links
- Complete documentation and information about TinkerForge: http://www.tinkerforge.com/en/doc/index.html
Additional Information
Additional Information
| SKU | P00000752 |
|---|---|
| Weight | 0.0100 |
| Manufacturer | Tinkerforge |
