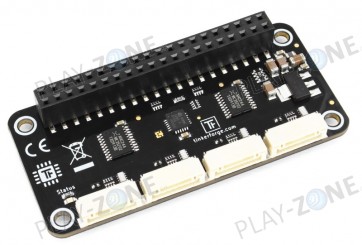

Tinkerforge HAT Zero Brick
Raspberry Pi HAT with Raspberry Pi Zero form factor and four ports for Bricklets
SKU:
P00002289
2 pcs. available from stock
CHF29.90
.
Product Description
Details
The HAT Zero Brick is a Raspberry Pi HAT with the standard Raspberry Pi Zero HAT form factor. The Brick follows the HAT specification and will automatically and without any changes work with Raspbian.
With the HAT Zero Brick you can connect up to four Bricklets to your Raspberry Pi.
The HAT Zero Brick provides Bricklet ports with 7 poles each. You can connect Bricklets with a 7 pole to 7 pole cable to it. Only Bricklets with 7 pole Bricklet ports are supported.
The USB supply voltage is measured and accessible through the API.
The HAT Zero Brick is electrically compatible to the Raspberry Pi 2B, 3B, 3B+, 4, Zero and Zero W. The mounting holes are compatible to the Raspberry Pi Zero and Zero W and it is designed to take as little space as possible. We also offer a bigger HAT Brick with eight Bricklet ports and additional features that has mounting holes compatible to the standard Raspberry Pi 2/3/4.
Features
- Raspberry Pi HAT with Raspberry Pi Zero form factor
- Four ports for Bricklets
- Measures USB supply voltage
Technical Specifications
| Property | Value |
|---|---|
| Current Consumption | 90mW (18mA at 5V) |
| Bricklet Ports | 4 |
| Dimensions (W x D x H) | 65 x 30 x 5mm (2.56 x 1.18 x 0.20") |
| Weight | 12g |
Current consumption, dimensions and weight without Raspberry Pi.
Comes Packaged With
- HAT Zero Brick
Links
- Complete documentation and information about TinkerForge: http://www.tinkerforge.com/en/doc/index.html
