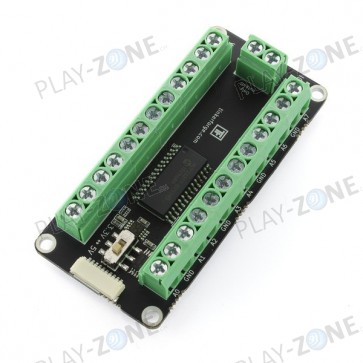

Tinkerforge IO-16 Bricklet
16-channel digital input/output with switchable logic voltage 3.3V or 5V* and configurable pull-ups and interrupts
SKU:
P00000767
Only 1 left
CHF17.90
.
Product Description
Details
Features
- 16-channel digital input/output
- Switchable logic voltage 3.3V or 5V*
- Configurable pull-ups and interrupts
Details
The IO-16 Bricklet can be used to extend the features of Bricks by external digital inputs and outputs.
The Bricklet features 2x 8 I/O pins that can be independently configured as digital inputs or outputs. Each input pin can additionally be configured with a pull-up or as interrupt source. The input/output voltages can be switched manually between 3.3V and 5V*. Via terminal blocks all signals and GND can be accessed. An additional terminal block delivers the switched output voltage.
Human interfaces, such as switches, push-buttons and LEDs are typical applications of this Bricklet.
Technical Specifications
| Property | Value |
|---|---|
| I/O Pins | 16 |
| Current Consumption | 1mA |
| I/O Voltages | Switchable between 3.3V and 5V* |
| Maximum Output Current | 20mA |
| Maximum API Calls** | set-port (1kHz), get-port (> 0.25kHz), callbacks (1kHz) |
| Dimensions (W x D x H) | 35 x 75 x 14mm (1.38 x 2.95 x 0.55”) |
| Weight | 30g |
* The maximum output voltage depends on the supply voltage. If the connected Brick is powered over USB, 5V may not be reached. The reason for this is a voltage drop about 0.5V caused by protection diodes on our products. If you need to reach 5V, you have to use a stack supply, e.g. the Step-Down Power Supply.
** depends on your system (OS, CPU etc.)
Comes Packaged With
- IO-16 Bricklet
- Chosen Bricklet Cable
- Chosen Mounting Kit
Links
- Complete documentation and information about TinkerForge: http://www.tinkerforge.com/en/doc/index.html
