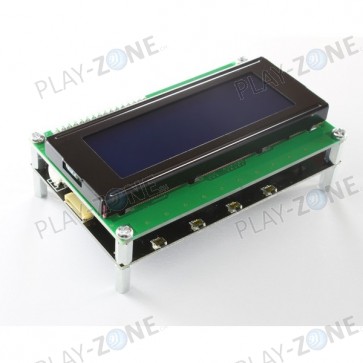

Tinkerforge LCD 20x4 Bricklet 1.2
20x4 character alphanumeric display with switchable blue backlight and 4 push-buttons
SKU:
P00001094
Only 1 left
.
Regular Price: CHF31.90
Special Price CHF26.90
Product Description
Details
Features
- 20x4 character alphanumeric display
- Switchable blue backlight
- 4 push-buttons
Details
This LCD Bricklet is equipped with a 20x4 character alphanumeric display with blue backlight and four push-buttons. It can be controlled with Bricks. The API allows to write characters to the LCD, get the state of the buttons, switch the backlight on or off and configure events for the buttons.
You can use this Bricklet to display text, for example a name of a song that is played on your PC or measurements from other Bricklets.
Technical Specifications
| Property | Value |
|---|---|
| LCD | Alphanumeric, 20 chars per line, 4 lines |
| Current Consumption | 36mA (with Backlight) |
| Backlight | Blue, software switchable |
| Contrast | Adjustable with potentiometer |
| Dimensions (W x D x H) | 60 x 98 x 22mm (2.36 x 3.86 x 0.86”)* |
| Weight | 96g* |
* without screws
Comes Packaged With
- LCD 20x4 Bricklet
- Chosen Bricklet Cable
- Chosen Mounting Kit
Links
- Complete documentation and information about TinkerForge: http://www.tinkerforge.com/en/doc/index.html
Additional Information
Additional Information
| SKU | P00001094 |
|---|---|
| Weight | 0.0100 |
| Manufacturer | Tinkerforge |
