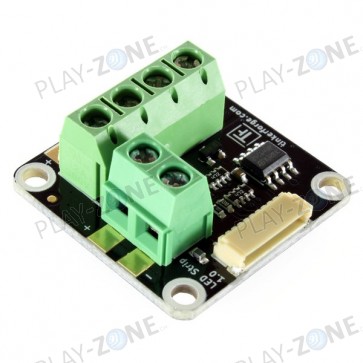

Tinkerforge LED Strip Bricklet
Controls up to 320 RGB LEDs (WS2801)
SKU:
P00000779
2 pcs. available from stock
CHF13.90
.
Product Description
Details
Features
- Controls up to 320 RGB LEDs
- All LEDs can be switched independently
- Update rate of up to 100Hz for each LED possible
Details
The LED Strip Bricklet can be used to control LED strips or LED pixels that are equipped with the WS2801 LED driver. It is possible to independently control 320 RGB LEDs (960 individual LEDs).
The API allows to change all LEDs at the same time with a fixed update rate of up to 100Hz.
Brick Daemon 2.0.10 or newer is recommended for this Bricklet.
Technical Specifications
| Property | Value |
|---|---|
| Supported LED Driver | WS2801 |
| Current Consumption | 1mA (idle), 4mA (active) |
| Resolution | 8bit per LED |
| Maximum Number of LEDs | 960 (320 RGB LEDs)* |
| Maximum Update Rate | 100 updates per second |
| Dimensions (W x D x H) | 30 x 30 x 12mm (1.18 x 1.18 x 0.47") |
| Weight | 10g |
* with a Master Brick, 480 with other Bricks
Comes Packaged With
- LED Strip Bricklet
- Chosen Bricklet Cable
- Chosen Mounting Kit
Links
- Complete documentation and information about TinkerForge: http://www.tinkerforge.com/en/doc/index.html
Additional Information
Additional Information
| SKU | P00000779 |
|---|---|
| Weight | 0.0100 |
| Manufacturer | Tinkerforge |
