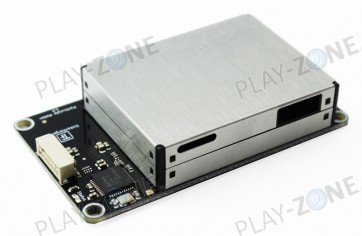

Tinkerforge Particulate Matter Bricklet with Enclosure
Measures Particulate Matter concentration, Measures in µg/m³ for differenz sizes
SKU:
P00002472
2 pcs. available from stock
CHF59.90
.
Related Products
Product Description
Details
Features
- Measures Particulate Matter concentration
- Measures in µg/m³ for differenz sizes
- Distinguishable particle sizes: PM1.0, PM2.5 and PM10
- Integrated fan for air flow
Details
The Particulate Matter Bricklet can be used to extend the features of Bricks by the capability to measure particulate matter concentration.
The Bricklet supports the size classes PM1.0, PM2.5 and PM10. Additionally it is possible to measure the count of particles in 100ml of air with the supported sizes of 0.3µm, 0.5µm, 1.0µm, 2.5µm, 5.0µm and 10.0µm.
The Particulate Matter Bricklet has a 7 pole Bricklet connector and is connected to a Brick with a 7p-10p Bricklet cable.
Technical Specifications
| Property | Value |
|---|---|
| Sensor | PMS7003 |
| Current Consumption | 388mW (77.6mA at 5V) |
| Particulate matter concentration | PM1.0, PM2.5, PM10 |
| Particulate matter count | 0.3µm, 0.5µm, 1.0µm, 2.5µm, 5.0µm, 10.0µm (in 100ml of air) |
| Dimensions (W x D x H) | 70 x 40 x 15mm (2.76 x 1.57 x 0.59") |
| Weight | 36.3g |
Comes Packaged With
- Particulate Matter Bricklet
- Case
Links
- Complete documentation and information about TinkerForge: http://www.tinkerforge.com/en/doc/index.html
Additional Information
Additional Information
| SKU | P00002472 |
|---|---|
| Weight | 0.0100 |
| Manufacturer | Tinkerforge |
