TinyCircuits TinyShield 16 Edge LEDs - Green

The TinyShield 16 Edge LEDs allows some cool and easy LED indications using only five I/O signals.

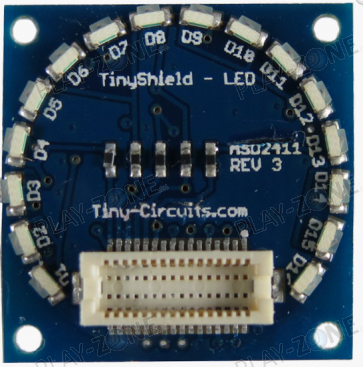

The 16 LEDs are mounted around the outside of the board, and can easily be seen even when the LED board is in the middle of a TinyShield stackup. The LEDs are arranged using Charlieplexing, which is a technique to allow for control of multiple LEDs using fewer I/O signals. Available with Red, Green and Amber LED color options.

Specifications:

• 16 Side Mounted LEDs around the board of the Board
• Ultra compact size and weight (smaller than a US Quarter!)
  • Square Version: 20mm x 20mm (.787 inches x .787 inches)
  • Max Height (from lower bottom TinyShield Connector to upper top TinyShield Connector): 5.11mm (0.201 inches)
  • Weight: TBD grams (TBD ounces)
• Arduino pins 5, 6, 7, 8, and 9 are used by this shield

To see what other TinyShields this board can be used with at the same time with, see the TinyShield Compatibility Matrix
