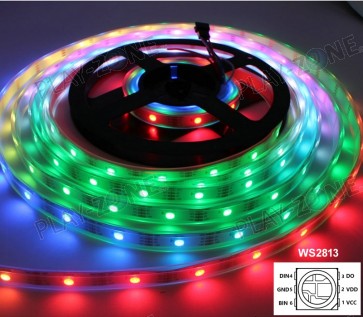

NeoPixel Digital RGB LED Weatherproof Strip 30 LED - 5 meters reel

The new WS2813 (Neopixel) - now with backup data line! Reel of 5 meters with 30 individually controllable RGB-LED per meter = 150 LED

The WS2813 are the successors of the popular WS2811/WS2812/WS2812/WS2812B Neopixel RGB LED. As with its predecessors, each LED can be addressed individually; only one pin is needed for control. Each LED now has a backup data line. This way the string continues to function normally even after a defective pixel - indispensable especially for larger installations!

As usual, each LED can be addressed individually with a 24-bit RGB value, the data speed is at 800Kpbs.

The connection now has 4 pins (VCC, GND, DI (Data-In), BI (Backup-In), whereby the backup does not necessarily have to be occupied - the first LED then does this automatically. This means that the WS2813 is fully compatible with its predecessors, no new software or library is needed.

The LEDs must be supplied with 5V, the maximum power consumption of this 5-meter-reel is 45 watts (all RGB on white, full power).  The LEDs are provided with a waterproof cover according to IP65 - if this is not required, it can simply be removed with a knife.

If 5 meters are too long for you, you can cut the string after each LED - there are extra soldering points between each LED.

This is a 5-meter reel with 4-pin JST SM connectors at both ends, as well as separate power/GND connectors.

Technical specs:

• 12.5mm (0.65") wide, 4mm (0.16") thick with casing on
• 30 LEDs per meter, 150 LED total
• Removable IP65 weatherproof casing
• 5VDC power requirement (do not exceed!) - no polarity protection
• LED wavelengths: 630nm/530nm/475nm
• Connector: 4-pin JST SM
