YFRobot HCSR04-Modul (Ultrasound / Distance Sensor) incl. PLA-Holder
YFRobot HCSR04-Modul (Ultrasound / Distance Sensor) incl. printed PLA-Holder
SKU:
P00000552
Only 1 left
CHF17.50
.
Product Description
Details
The Eye for your Robot! Measure the distance to the obstacle.

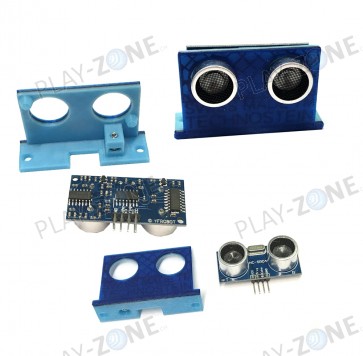

This set contains:
- HC-SR04 Ultrasonic distance-sensor (compatible with the Arduino Ultrasonic Library)
- Holder made with PLA-Plastic on an mElephant 3D (3D-Printer)
This HC-SR04 sensor can be used anywhere, where distances need me measured fast and precise - like for robots to regonise obstacles. It can be mounted on f.ex. a servo to add rotation - then you can programm in which direction the robot should look!
The sensor can measure distances from approx. 2cm to 500cm with a resolution of up to 0.3cm!
Fully compatible with the Arduino Ultrasonic-Library!
Technical Details:
- Operating Voltage: 5V
- Outputsignal (Ultrasonic Frequency) High = 5V, Low = 0V
- Sensorangle: approx. 15°
- Range: approx. 2cm - 500cm
- Tolance: approx. 0.3cm
- Input Signals: 10µs TTL-Pulses
- Echo-Signal: Output TTL PWM-Signal
- Connectors:
- VCC
- Trigger
- Echo
- GND
Additional Information
Additional Information
| SKU | P00000552 |
|---|---|
| Weight | 0.0100 |
| Manufacturer | YFRobot |
Reviews
Downloads
 HCSR04 Ultrasonic Library Size: (6.28 KB) |
