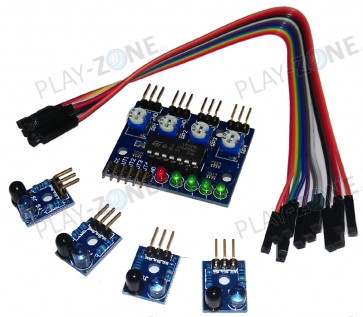

Quadruple IR-Sensor with LM339 Comparator
Four IR-Sensors at once? No Problem with our new Quad Sensor Board
SKU:
P00000594
more than 10 pieces available from stock
Regular Price: CHF19.90
Special Price CHF14.90
Product Description
Details
Quadruple IR-Sensor with LM339 Comparator
Equip your robot with four IR-Senors in just minutes!
The mainboard can be mounted anywhere on your robot, the IR-Modules are connected with standard jumper-wires and therefore can be mounted anywhere on your vehicle. Both the mainboard as well as the IR-Modules do come with mounting holes.
Sensitivity of each IR-module can be adjusted by a potentiometer. 4 status-LED ease calibration. You may power the board with either 3.3V or 5V. Of couse, there are 4 OUT-Pins to connect the board to your microprocessor or driver-board.
Details:
- Adjustable triggering distance of approx 5cm to 20cm
- Size mainboard: 43mm x 33mm (wihtout pins)
- Size IR-module: 17mm x 13mm (without pins)
- Connections mainboard: VCC, GND, OUT1-4
- Connections IR-Module: VCC, GND,OUT
- 5 Status-LED (Power, 4 x OUT)
- Delivered incl. Jumperwires 20cm
- Operating Voltage 3.3V - 5V
Additional Information
Additional Information
| SKU | P00000594 |
|---|---|
| Weight | 0.0500 |
| Manufacturer | YFRobot |
Reviews
Downloads
 LM339 Datasheet Size: (2.82 MB) |
